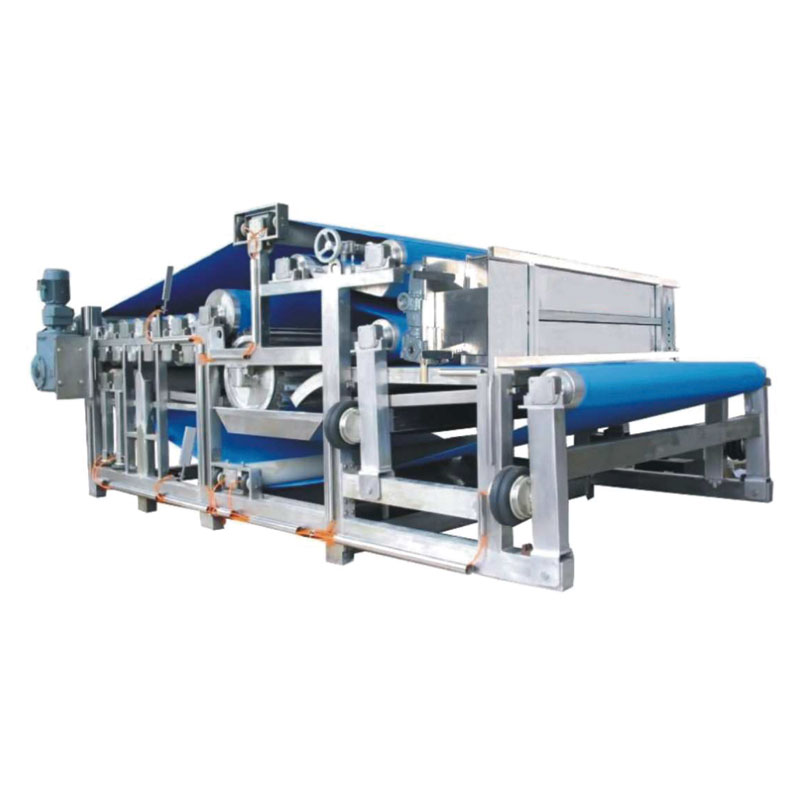

Belt press machine
The belt presser is a newlytype efficient and continuous operation solid-liquid separation equipment. The belt press filter machine is suitable for pressing the apple, pear, carrot, herb leaves and other fruit and vegetable with high juice extract rate and wide application range. The belt squeeze extractor can be also used to dewater waste water sludge for sewage treatment plant, tap water plant, paper, leather, printing, petrochemical, pharmaceutical, brewing, food etc. Industry.
Belt press machine
The belt presser is a newlytype efficient and continuous operation solid-liquid separation equipment. The belt press filter machine is suitable for pressing the apple, pear, carrot, herb leaves and other fruit and vegetable with high juice extract rate and wide application range. The belt squeeze extractor can be also used to dewater waste water sludge for sewage treatment plant, tap water plant, paper, leather, printing, petrochemical, pharmaceutical, brewing, food etc. Industry.Features
1.All stainless steel fabrication, conform to food sanitary standard.
2.High strength press rollers ensuring high efficiency.
3.Filter belt, air bag, bearing, spray and other key devices are foreign famous brand to assure stable and reliable performance.
4.Clean water filter from the arc screen, can be recycle use.
5.Adjusting filter belt by frequency conversion , upper and lower belts can be interchanged.
6.Full automatic CIP cleaning system, no manual operation.
7.Automatic control, simple operation and easy to maintain.
Specification and technical data
| Model | MSDZ600 | MSDZ800 | MSDZ1200 | MSDZ1750 | MSDZ2500 |
| Capacity（t/h） | 1-1.5 | 1.5-3 | 4-6 | 8-12 | 18-22 |
| Belt width（mm） | 600 | 800 | 1200 | 1750 | 2500 |
| Length（mm） | 7500 | 9200 | 14100 | 14500 | 17100 |
| Juice yield(apple) | ≥75% | ≥75% | ≥75% | ≥75% | ≥78% |
| Main motor power(kw) | 1.5 | 2.2 | 2.2 | 3 | 5.5 |
| Spreading material power(kw) | 0.25 | 0.25 | 0.37 | 0.37 | 0.55 |
| Press rollers qty. (pcs) | 18 | 20 | 20 | 20 | 24 |
| Working pressure（bar） | ≤0.4 | ≤0.4 | ≤0.4 | 0.4-0.5 | 0.4-0.5 |
